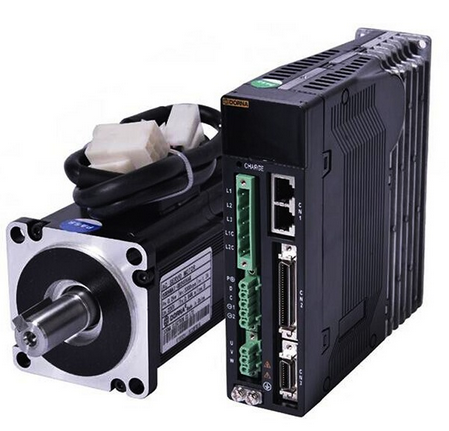

A servo drive is a type of electronic amplifier utilized to control electric servomechanisms. Command signal sent by the control system is received by servo drive then amplifies it and sends out electric current to a servo motor to create motion. It is used in applications such as manufacturing, robotics, and automation. There are different types of servo drive available, however, the most general one is the torque-mode amplifier which provides various advantages such as better positioning, higher speed, and more competent motion control. Servo drive offers motor feedback which helps to determine disruptions in the precision of the command motion.
Servo Motors are fundamental electric motors utilizing an extra servomechanism to control exact angular rotation. They are built up of various components like AC and DC motors and are used in a closed-loop system, which lists position feedback for controlling the rotating speed. Nowadays, servo motors are utilized in large industrial applications for various purposes like controlling & more.
What are the types of Servo Drive?
Linear Servo Amplifiers and Pulse Width Modulated Amplifiers are two main types of servo amplifiers used:
Linear Amplifiers are generally utilized in applications that require less than 100 watts. Also, when the input cannot be switched because of the restrictions of other components of the system. These servo amplifier types are often run hotter.
Pulse Width Modulate Servo Amplifiers control the voltages on and off at greater speed to attain the standard target voltage. This produces a more energy-efficient servo drive and makes far less heat too. These types of servo amplifiers are more common than linear amplifiers.
Applications of Servo Drive
Servo drives are utilized for various applications. As they are assembled into broader devices they are found in many various industries.
Aerospace, Marine, Aviation, Satellite Communication, Laboratory Automation, Arctic Drilling, Ground Mobile, and Extreme Outdoor Operation are some common applications in which servo drives are used.
In addition, servo drives are used in:
Robotics – Servomotors are utilized on the robot arm's joint to check the angle and pace of movement.
Printing press – Servo motors can regulate the start and stop of the print heads and the paper movement ensuring precise printing.
Conveyor belts – In many manufacturing environments, servo drives are utilized to stop and start conveyor belts.
Metal cutting machines – the exact motion control, that servo motors can offer make it ideal for different metal cutting and forming machines such as milling, lathes, punching, grinding, and pressing.
Camera focusing – inside lots of cameras there are little servo motors, which help with the autofocus purpose on the lenses.
Automatic Doors – Highly common application since automatic doors are utilized everywhere in shops, hotels, and offices; servo motors regulate the door movement once the indication from the person has been received.
Why choose CM Industry Supply Automation to buy servo drives or servo motors?
At CM Industry Supply Automation, we know the significance of installing sturdy and trustworthy electric instruments, products, devices, and tools across various sectors. From VFD, HMI, electric motors, PLC, voltage switchgear, sensors, control panel, gearboxes, and transformers, to servo drive and servo motors, we hold an extensive portfolio of industrial automation electrical products. Our trained professionals are meticulously selling a reliable, affordable, and wide range of servo motors designed by the renowned brands such as YASKAWA, DELTA, SIEMENS, PARKER, LENZE, KEB, HPB MOTION, INNOVANCE, ALLEN BRADLEY, TECHMATION, ROCKWELL, EMOTRON, BECKHOFF, STOBER, JETTER, MITSUBISHI and more to deliver most favorable outputs and results with negligible faults.
VFD often called Variable frequency Drive or Variable speed drives can save energy in various ways. Certainly, the energy saving level depends upon the application, the features of drive and how you set up the drive. Here CM Industry Supply Automation shares a way to save money in via VFD through these ways:
A 12-pulse VFD includes phase shift transformers prior to 6-pulse VFD to stop the harmonics returned back to the source. The phase shift transformers are tuned for reducing harmonic distortion to below 10% at the input terminals of the Variable frequency drive.
Electric motors are playing an important role in today's technology. In an attempt to reduce electric motor energy usage and optimize their efficiency―manufacturers have used many drive-technologies to change the speed of motor. These technologies include control motors, VFD, and VSD in changeable conditions.
Variable Frequency Drives have been the actual standard to control the induction motor or a synchronous motor speed. VFDs are utilized to control the speed of motor in different applications that includes fans and conveyor systems – but they are highly beneficial for industrial pumps.
VFDs try to reduce unnecessary power consumption of electric motor and optimize the effectiveness and working of systems that uses electric motors.
Integral power factor improvement. Many facilities include power factor (PF) improvement capacitors at the service. They are present there to escape a Power Factor penalty from the electric service. Due to low power factor, they are wasting power, back at the load. A Power Factor corrected drive cut down all or almost all of this waste.
Integral harmonics improvement. Harmonics generally causes waste of energy and a motor to work hotter, which is less efficient. Exact for surplus harmonics and your motors run longer and consume less energy.
Buying a Variable frequency Drive to get soft starting is not good, as soft starters worth much less than a VFD. However, this characteristic is a normal VFD feature, and when correctly associate will not only broaden the motor's life but also decrease its energy usage. For mainly big motors, the harmful effects on the complete distribution system of across the line beginning can be cut down.
Input speed control is truly application-specific. You might wish the gearbox for torque increase, something a Variable Frequency Drive cannot offer you. By reducing the motor speed, you can save energy, instead of scattering the function already done by the motor. For instance, a hydraulic system might utilize a pressure relief or bypass valve, which push some flow back to the reservoir to maintain system pressure at spec while the motor functions complete tilt. Functioning the motor at precisely the pace required to offer the essential pressure decreases this waste.
Continuous drive rather than ON or OFF that is even application-specific. For instance, an oversized motor to match some idea of a utmost load that, actually, is never there. The cycle of motor goes on and off. The Variable Frequency Drive can efficiently “right size” the motor to the load it really is driving by choking it back.

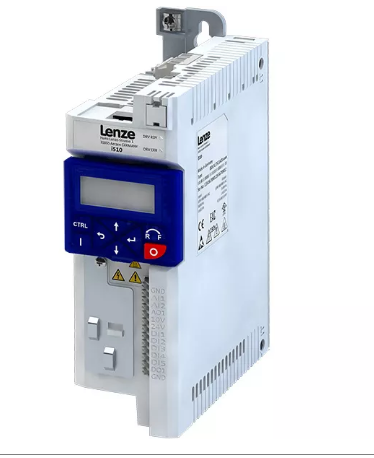

A variable frequency drive often called VFD is a kind of motor controller that has the ability to drive an electric motor by changing its power supply of frequency and voltage. It has the ability for controlling motor ramp-up and ramp-down during beginning or end, correspondingly.
Although the drive controls the motor power supply's frequency and voltage, we often called it to speed control as it comes out as an adjustment of motor speed.
VFD saves energy and increase the efficiency of the system
In hybridization applications, VFD converts power
Match the drive speed to the process needs
Match the drive's torque or power to the process needs
Enhance the working environment
Reduces noise levels
Lower mechanical stress on machines to enhance their lifetime
Cut off-peak use to avoid peak-demand costs and reduce the essential motor size
Additionally, drives manufactured today integrate networking and diagnostic capacity to enhance control performance and boost productivity. Often, VFD is chosen as the controller in every motor-driven system because of its features such as intelligent motor control, energy savings, and cut down of peak-current drawn.
VFDs are commonly used for controlling fans, pumps, and compressors. 75% of all drives functioning globally all account for these applications.
Less complicated kinds of motor controllers are soft starters and across-the-line contactors. A soft starter refers to a solid-state device and offers a tender ramp-up to full speed during the setup of an electric motor.
An across-the-line contactor refers to a kind of motor controller generally applying the full line voltage to an electric motor.
What is the key benefit of using a VFD?
A VFD can change the power supplied to meet the energy necessity of the driven equipment, and thus it saves energy or optimizes energy use.
The drive can considerably cut down energy consumption as compared to DOL (direct-on-line) operation, in which the motor works at full speed irrespective of the demand. Drive can save power or fuel up to 40%.
Are VFDs useful for power conversion?
Yes, VFDs are useful in power conversion for hybrid systems utilizing battery storage.

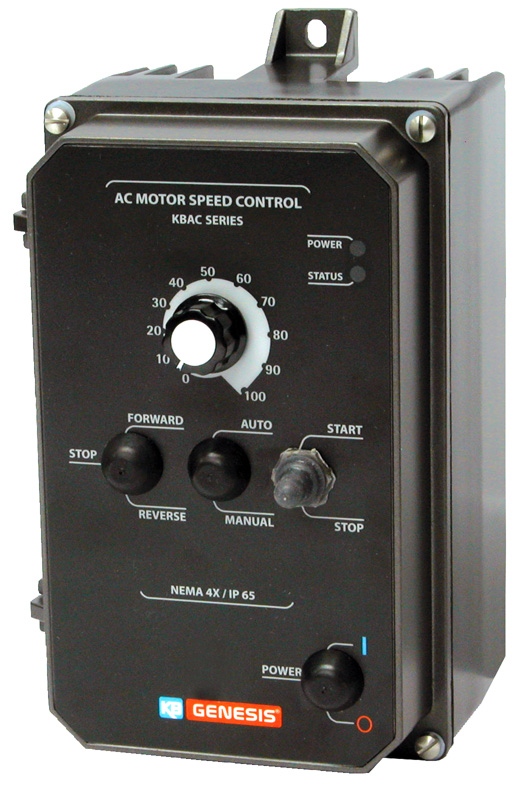

How you will distinguish a VFD, a variable speed drive (VSD), and an AC drive?
There is no difference between a VFD, a variable speed drive (VSD), and an AC Drive, all are the same.
What are the types of VFDs?
There are different types of drives available as you can check out at CM Industry Supply Automation. VFDs are extensively used in industry. Single-phase VFDs and three-phase VFDs are available to match the requirement of the different applications. The only differences we can observe in drive types are the methods to control frequency and voltage; along with the harmonic mitigation technique.
Current source inverter, pulse-width modulation (PWM), and voltage source inverter are the three main variable frequency designs utilized in drives. However, the PWM technique is highly common. It just needs switching the power devices of AC drive inverter such as transistors or IGBTs (insulated-gate bipolar transistors) – start and stop many times, to make the suitable RMS (root-mean-square) voltage levels. Controlling and changing the pulses width is how PWM changes the frequency and voltage of the output.
